Phone Call 1 Channel Remote Control Switch GSM Gate Remote Door Opener

FOB Reference Price:Get Latest Price
US $26-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
door opener
remote control switch
DC Power supply:
8-24VDC 2A
Power consumption:
12V input
Frequency range:
Dual band 900/1800 MHz (Default)or 850/1900Mhz(Optional)
SIM Card:
Supporting 3V / 5V SIM Card
50 Ω SMA Antenna interface
Temperature range:
-20-+60 °C
Humidity range:
Relative humidity 90% (condensation free)
Relay Output:
1, Dry Contact, NC or NO, 10A/240VAC
1 channel GSM switch with 99 users
Supply Ability
Supply Ability:
1000 Unit/Units per Week OEM
Packaging & Delivery
Packaging Details
white box for 1 channel gsm switch with 99users and color box for OEM
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(day) 10 To be negotiated

APP Control Free Phone Call 1 Channel Remote Control Switch GSM Gate Remote Door Opener

Product Description


1 channel gsm gate door opener with APP.jpg


GSM door opener is a GSM switch remote control system which can activate automatic gates with a free call from you mobile phone. The users’ phone numbers are programmed into the device by SMS. The device recognizes incoming Caller ID and drop the call before switching. With this system you can authorize up to 99 mobile phones to open the gate at no cost. This system has two models N/O,N/C output.




1. Free charges. the call from authorized number then carry’s out the turn ON/OFF

2. Multiple applications. (Gates, bollards, barriers, garage doors, shutters and access doors or machines);

3. Secure - Using caller ID for identification, unknown callers are ignored;

4. Can be operated from anywhere, no distance limit;

5. Add or remove users by SMS Text command;

6. No need to provide a remote control for different users;

7. Up to 99 authorized phone numbers can be configured;

8. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message to admin immediately;

9.One output with relay rating 1A/12V AC,2A/30V DC for connecting the switch of the door or machines;

10. The relay action will return a SMS confirmation to the owner; this function is editable by user;

11. Based on GSM Network, no need any applications.





Parameter item

Reference scope

DC Power supply

9~24VDC  2A

Power consumption

12V input  Max. 50mA/Average 50mA

Frequency range

Quad band 850/900/1800/1900Mhz(Optional)

SIM Card

Supporting 1.8/3V SIM Card


50 Ω SMA Antenna interface

Temperature range

-20-+60 °C

Humidity range

Relative humidity 90% (condensation free)

Relay Output

1, Dry Contact, NC or NO, 2A/30V DC


Detailed Images

        GO1 (1).jpg


GO1 (2).jpg


remote switch.jpg






Related Products

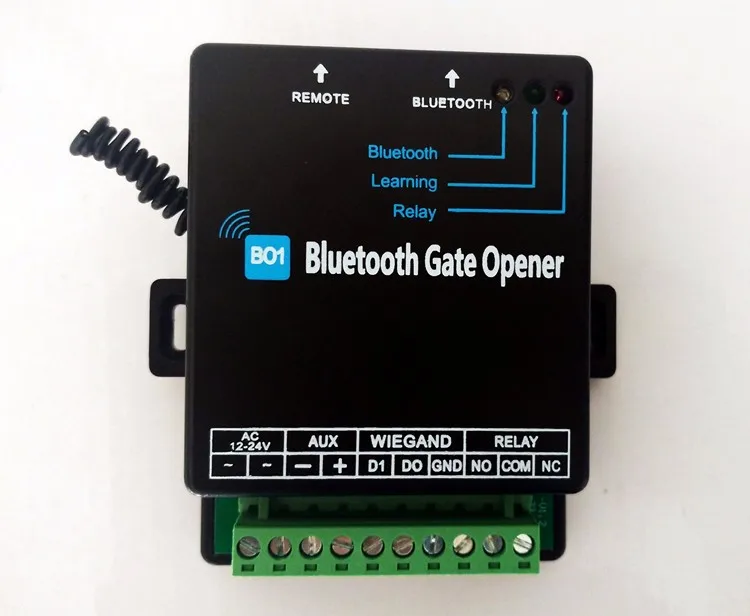

 Bluetooth gate opener HX-BO1






CE /RoHS/ ISO9001




Packaging & Shipping


Company Information

Homelux Factory Flowchart




Homelux Security and alarm exhibitions







1. Q: How To Order ?

    A: Step 1, please tell us what model and quantity you need;
       Step 2, then we will make a PI for you to confirm the order details;

         Step 3, when we confirmed everything, can arrange the payment; Step 4, finally we deliver the goods within the stipulated time.

2 . Q: When will make delivery ?

     A: Delivery Time
-Sample Order: 1-3 days after receipt of the full payment.
-Stock Order: 3-7days after receipt of the full payment
-OEM Order: 12-20days after receipt of t

3. After-sales Service

  1 year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.


    T/T, Western Union, Paypal.

5. Transportation
     Transported by DHL, UPS, EMS, Fedex,Air freight. sea freight.


6.Q: OEM ODM order available ?

    A: Our factory support OEM and ODM order, welcome to discuss about the specific requirement about your order.


Anything you need help please contact with me ,I will proceed your order request soon and well.
